Solar Conduit in the Attic — Best Practices & Requirements

Running conduit through an attic is a common part of many solar installations. The goal is to keep the wiring protected, code‑compliant, and watertight as it transitions from the roof into the interior of the home. This guide outlines the essential steps and components required for a clean and safe attic conduit run.

Buy Slightly More Conduit Than You Think You Need

Conduit lengths can vary once you begin routing around rafters, HVAC ducts, or other attic obstacles.
It’s smart to purchase a little extra to avoid unnecessary return trips.

Keep your receipt — any unused conduit or fittings can be returned.

Transitioning From Interior to Exterior

As soon as the conduit exits the attic and approaches the exterior of the home, it must transition from metal flex conduit to EMT (Electrical Metallic Tubing).

This is required to maintain a watertight seal at the roof penetration.

Roof Penetration Requirements

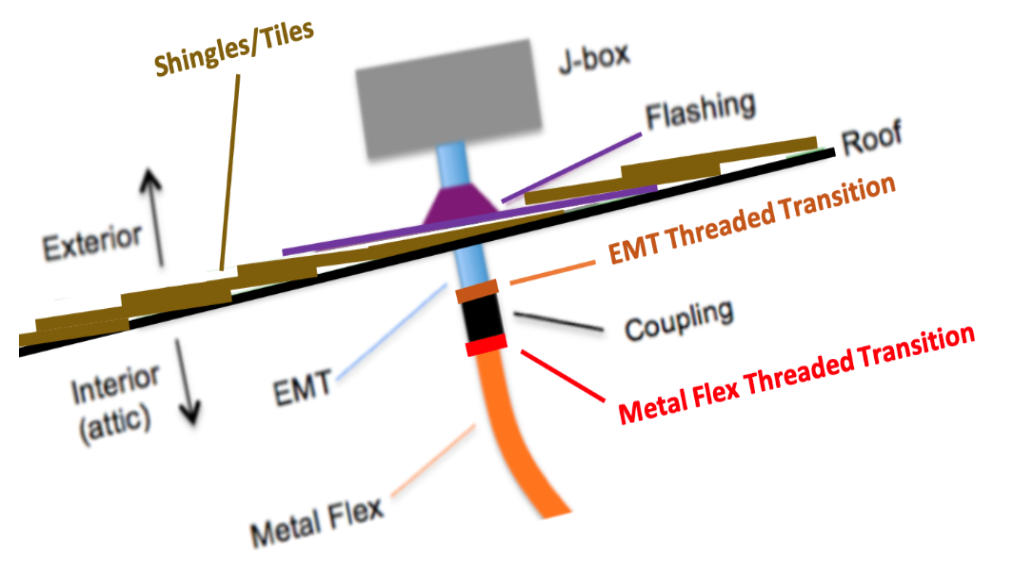

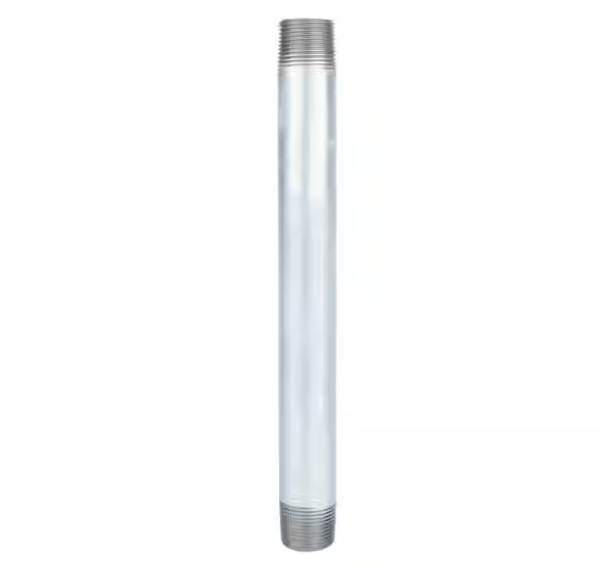

  • Use a 12-inch piece of EMT to pass through the roof flashing
  • Use a threaded coupling to transition from EMT to metal flex inside the attic
  • Ensure all fittings are water‑tight rated

Using J‑Boxes for Attic Entry

Each rooftop J‑box will have one conduit entering the attic.

Use the bottom knockout of the J‑box and install EMT with water‑tight fittings through the flashing.
Once the EMT enters the attic, transition to metal flex using the threaded coupling.

Recommended J‑Box for Roof Penetrations:
https://www.altestore.com/products/quick-mount-pv-qm-jbx-rf02-b1-jaybox-junction-box-for-comp-shingle-roofs

Inside the Attic

Once inside the attic:

  • Transition from EMT to metal flex conduit
  • Secure the flex conduit neatly along rafters or joists
  • Avoid sharp bends or tight turns
  • Keep conduit away from heat sources (flues, vents, etc.)
  • Maintain a clean, accessible path for future service

Follow Manufacturer Guidelines

Always follow the installation instructions provided by the manufacturer of your roof‑mounted J‑box or flashing system.


For full installation PDF Click here
